Kaufman Engineering Systems KPal Collaborative Robotic Palletizers
Collaborative Robotic solutions designed to palletize cases, bundles, bags, and trays.
The new Kaufman KPal collaborative palletizers are a perfect fit for those applications where palletizing operations are limited to a small footprint. The collaborative group of palletizers shines in the end-of-line arena where tight spaces are available, and low-to-moderate case rates are the design requirement. These systems are meticulously designed to provide the perfect combination of space and operator interaction, offering a cost-effective palletizing solution using cutting-edge technology.
The KPal Collaborative Models:
- KPal CBV - Collaborative Vacuum System
- KPal CBS - Collaborative Spatula System
- KPal CBC - Collaborative Clamp System
- KPal CBB - Collaborative Bag System
KES will configure your KPal Collaborative palletizer with the most efficient end-of-arm tooling for your specific product. The KPal CBV group features our proprietary vacuum-style end-of-arm tooling for conventional sealed corrugate cases. The KPal CBS group features our spatula-style end-of-arm tooling for bundles or trays. The KPal CBC group features our clamp-style end-of-arm tooling for bundles, cases, or trays. The KPal CBB group features our bag gripper end-of-arm tooling for high-speed palletizing of bagged products. With a long list of standard and optional features, the KPal Collaborative group is sure to increase the rate of return on your equipment investment.
The KPal Collaborative Palletizers are tailored to your industry segment whether it be Food, Beverage, Building Products, Paper, Plastic Container, Glass Container, Pharmaceutical, and Personal Care to name a few. KPal’s Standard Features include Allen Bradley PLC and control components and Category (3) Safety Architecture, Complete system set up and testing at KES. The KPal Collaborative Group of Palletizers also is available with the options needed to meet your plant and production needs.
Example Configuration of a KPal Collaborative Palletizing System
Videos of KPal Collaborative Palletizing Systems in Action

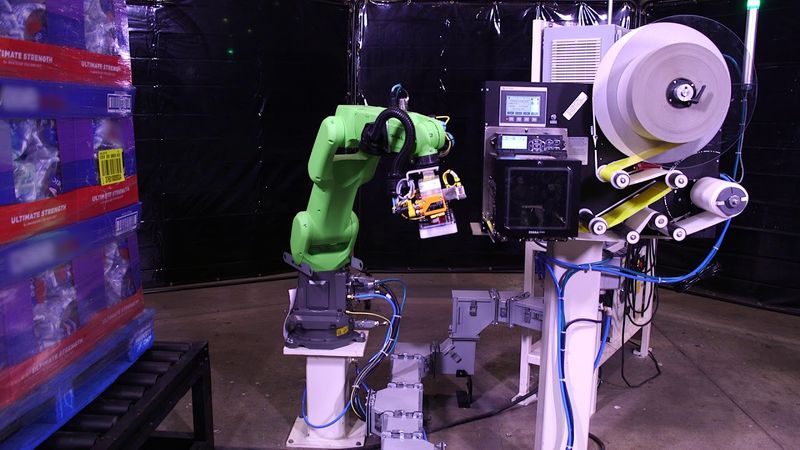

Collaborative Robotic Labeler
KDPal K5 Full Layer Plastic and Glass Container Depalletizing System
KPal K5G Full Layer Glass Bottle and Case Palletizing and Depalletizing Robotic System
KDal K5P Full Layer Plastic Container Depalletizer and KPal S Bundle Palletizing System
KDPal K5 Robotic Dunnage Depalletization System
KPal Collaborative Palletizer Group Standard Features
KPal Collaborative Palletizer Group Options
Choose among a huge selection of KPal Options:
- KRL1 robotic labeler for application of labels to unit loads.
- Infeed conveyance systems and spiral conveyors to deliver products to the palletizer.
- Complete line of unit load conveying equipment including roller conveyors, chain conveyors, mattop conveyors, transfer cars, turntable conveyors, and chain transfers.
- Complete line of KES stretch wrappers.
- Ross automatic air dump valves.
- System pre-wire package with NEMA-12 wireway.
- FANUC ZDT - Zero Downtime Monitoring.
- Panel heating/air conditioning.
- Zone disconnects.
- Robot servo disconnects.
- Local motor disconnects
- Barcode scanning.
- Field installation using KES install teams.
- System start-up using KES factory-trained technicians.
- Field service by KES factory-trained technicians.
- Safety validation by Rockwell.
- UL 508A listed control panel.
As a level five Authorized Systems Integrator for FANUC Robotics, FANUC's highest level of attainment, Kaufman Engineered Systems applies FANUC robot technology to provide customers with complete end-of-line system solutions.
The solution may be as simple as a dedicated palletizing cell, or as complex as a multi-line handling and palletizing system. No matter how big or small, Kaufman Engineered Systems will address each project and customer with the same integrity and professional response.
Service and Support
With each KDPal system comes Kaufman Engineered Systems service and support. Backed by 75 years of serving customers, Kaufman is a partner you can rely on to respond quickly and efficiently when having service needs. With your KDPal palletizer, you will have service options to choose from if you wish to set up quarterly, semi-annual, or annual maintenance support with Kaufman Qualified Technicians.
Let us help you become a new member of our family. We look forward to working with you.
